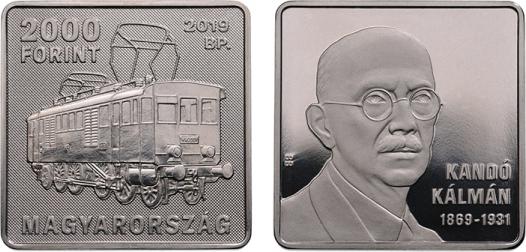

Hungary 2,000 Forint 2019. Kálmán Kandó (1869-1931). Copper-nickel Proof

Hungary 2,000 Forint 2019. Kálmán Kandó (1869-1931). Copper-nickel Proof



$19.95

The Role of Hungarians in Technical and Scientific Progress Around the World
Kálmán Kandó (1869-1931)

The Hungarian engineering genius Dr. Kalman Kando graduated from the Technical University of Budapest in 1892. He was the first to create a railway-electrification system in which locomotives operated at the same frequency as that used by utilities and were integrated into a public utility system. He introduced the three-phase system of electric traction (1902–15). In 1923 he constructed a new type of electric locomotive with three-phase induction motors.
By combining the electric power needs of railways, industries, and the public, Kandó found the ideal solution for effective energy distribution for any country.  Kandó’s invention of the phase-changing electric locomotive opened a new era in the history of railway development.

Denomination: 2000 Ft     Metal: CuNi    Weight: 14 grams
Edge:  Smooth   Size: 28.43 ×28.43 mm
Quantity:  6000 pcs Proof

More On Kálmán Kandó

Education

He was educated at the Budapest Technical University where he gained a diploma in mechanical engineering. He worked in France as a junior engineer designing and developing Nikola Tesla's induction motor.Work on railway electrification

In 1894, Kálmán Kandó developed high-voltage three phase alternating current motors and generators for electric locomotives ; he is known as the father of the electric train. His work on railway electrification was done at the Ganz electric works in Budapest. Kandó's early 1894 designs were first applied in a short three-phase AC tramway in Evian-les-Bains (France), which was constructed between 1896 and 1898. It was driven by 37 HP asynchronous traction system.[1][2][3][4][5]

In 1907 he moved with his family to Vado Ligure in Italy and obtained employment with Società Italiana Westinghouse.[6] He would later return to Budapest to work at the Ganz factory where he became the managing director.

He was the first who recognised that an electric train system can only be successful if it can use the electricity from public networks. In 1918,[7] Kandó invented and developed the rotary phase converter, enabling electric locomotives to use three-phase motors whilst supplied via a single overhead wire, carrying the simple industrial frequency (50 Hz) single phase AC of the high voltage national networks.[8]

Italy

 Electric locomotive RA 361 (later FS Class E.360) by Ganz for the Valtellina line, 1904

Under his leadership the Ganz factory began work on three-phase haulage for railways. Based on their design, the Italian Ferrovia della Valtellina was electrified in 1902 and became Europe's first electrified main line railway.

For the Valtellina line, three-phase power was supplied at 3,000 volts (later increased to 3,600 volts) through two overhead lines, while the running rails supplied the third phase. At junctions, the two overhead lines had to cross and this prevented the use of very high voltages.

The three-phase, two wire, system was used on several railways in Northern Italy and became known as "the Italian system". There are now few railways which use this system.

Hungary

 Kandó V40 electric locomotive of MÁV

To avoid the problems associated with the use of two overhead wires, Kandó developed a modified system for use in Hungary. Power semiconductors not having been invented yet in the 1930s, the Kandó V40 locomotives' systems relied on electromechanics and electrochemistry.

Phase converter

Single-phase power was supplied at 16,000 volts and 50 Hz through a single overhead line and converted to three-phase on the locomotive by a rotary phase converter.[9] The drive motors, made by Metropolitan-Vickers, had a very large diameter of 3 meters and incorporated four sets of 24 magnetic poles each, which could be added to the traction effort at will, producing highly efficient constant speeds of 25, 50, 75 and 100 km/h over rail (or 17/34/51/68 km/h for the V60 heavy freight train engine variant, which had six pairs of smaller driving wheels).

Power factor

A major benefit of this arrangement was a power factor of nearly 1.00 in the catenary-attached equipment, which fulfilled the electric powerplants' strict load-distributing regulations. The unacceptably poor power factor of pre-World War II design electric motors (occasionally as low as 0.65) was not felt outside the Kando locomotives, as the phase changer machinery provided isolation.

Speed control

Intermediate speeds were maintained by connecting a water and saltpeter based adjustable resistor to the line, which reduced the efficiency of the locomotive. Timetables for electrified lines were supposed to allow use of full efficiency constant speeds most of the time but, in practice, the need to share the track with trains hauled by MÁV Class 424 steam locomotives meant the water-hungry and wasteful "gearbox resistor" had to be used often.

Kandó triangle drive

The propulsive force was transferred to the locomotive's wheels using a traditional pushrod system, designed to provide manufacturing and maintenance commodity to the predominantly steam-based Hungarian Railways (MÁV) of the time. The so-called Kandó triangle arrangement [10] transferred power from the electric motor to the pushrods in such a way that no oblique forces were exerted on the chassis, making the V40 less hurtful to the rail track compared to steam engines. In practice the V40 pushrod system was too precise for steam-era habits based maintenance and required more frequent care.

Shaft drive

More than a decade after Kandó's death two new, shaft-driven prototypes of his design were built by the Ganz company, to allow for 125 km/h traction speeds. The V44 electric locomotives [11] proved too heavy for general use, owing to their 22 metric ton per axle rail load. Both vehicles were eventually destroyed in USAAF bombing raids in 1944, running only 16,000 kilometers overall.

Bogie-mounted motors

After the second World War, a last series of electric phase-changer locomotives were built by the new communist government in Hungary. Owing to Cold War restrictions, the innovative V55 type,[12] which used bogie-mounted motors, had to be constructed of domestic components entirely and suffered from reliability problems in their double-conversion phase-changer / frequency-changer propulsion system. (The traction motors of pre-WWII V40 and V60 locomotives were made in Britain by the Metropolitan-Vickers company, as part of an economic aid programme organized by Lord Rothermere.)

Preservation

Currently one example of the V40,[13] the V55 [14] and the V60 locomotive [15] each survives. They are preserved at the Budapest Railway History Park, but require restoration after decades of open air static display. If funding permits, the repaired V40 may return to the open track for "nostalgic service", with a semiconductor front-end added to its system for 25 to 16 kV AC down-step conversion.



France

Kandó designed in 1926 the 1.5 kV DC 2BB2 400 (fr:2BB2 400) for the Paris-Orleans line which were the strongest DC locomotives in Europe at that time.

United Kingdom

There were plans to use the two-wire, three-phase, system on the Portmadoc, Beddgelert and South Snowdon Railway in Wales and the Metropolitan Railway in London but neither of these plans came to fruition.

Kandó's legacy

Kálmán Kandó died at Budapest in 1931 but his work lives on. Many modern electric trains work on the same three-phase high tension AC principle introduced by the Kandó V40 locomotives, but the rotary converter is replaced by semiconductor devices. Three-phase powered electric motors allow for high traction effort even at great speeds and the difficulty of maintaining arbitrary speeds at full efficiency is eliminated by using IGBT semiconductors and the use of digital controls.
